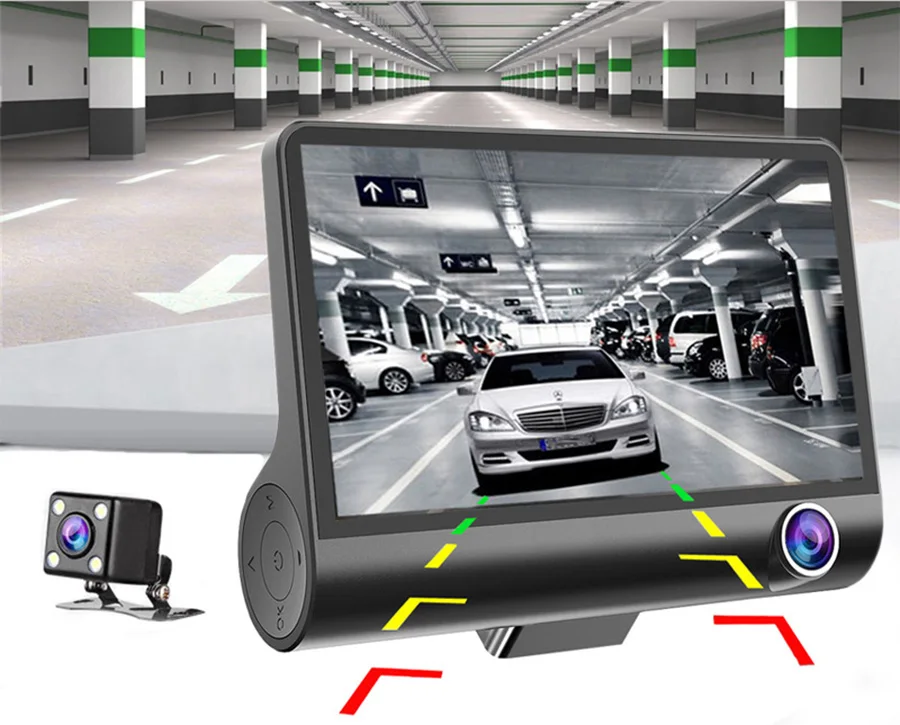

E-ACE Car DVR 3 Cameras Lens 4.0 Inch Dash Camera Dual Lens With Rearview Camera Video Recorder Auto Registrator Dvrs Dash Cam



Features And Specifications	Installation Type	Portable Recorder, suitable for all vehicles with windshield
Screen(Display) Size	4.0 Inch IPS Screen
Chipset(Processor/CPU)	JIELI
Camera Sensor	Front 2MP + Inside 1 MP + Rear 1MP
Camera Lens	Front + Inside + Rear; 6 Glass + 4 Glass + 4 Glass ; 170 Degree Angle + 120 Degree Angle + 140 Degree ; F2.0 Aperture + F2.2 Aperture + F2.2 Aperture
Video Resolution	Front: 1920*1080P@25FPS; Inside : 640*480P@25FPS; Rear: 640*480P@25FPS
Photo Resolution	12M
Video Code	H.264
Battery	Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
OSD Languages	English, Russian, Chinses, Japanese, Korean,etc….. (If you want other languages,tell us,we will help you add it)
Basic Features	G-Sensor, Cycle Recording, Motion Detection, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
Memory Card	Micro SD Card, class 10 and 8GB to 32GB (Not included)
Rear Camera Upgrade	Support max 12 meters cable Rear Camera
Add Features	Night Vision……
More Features	Coming soon…..
Packing List	Basic:	1 x Packaging box	1 x DVR	1 x Power charger	1 x User manual	2 x Holder	1 x Rearview Camera With 6 Meters Cable(Optional)
1 x Rearview Camera With 10 Meters Cable(Optional)
1 x Rearview Camera With 12 Meters Cable(Optional)
1 x Buck Line For 24H Parking Monitoring(Optional)
1 x Real Class 10 High Speed TF Card(Optional)
Pay Attention	About 24h Monitoring	The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
About Video	Our Car DVR is FHD 1080P Video Recorder, must use high-quality Class 10 TF Card, any low quality/low-speed TF card all can’t support our DVRs work normally if you can’t make sure you have good TF Card

Main Features

B28 Car Dvr With 3 Camera Lens

1.Front View 2.Car Inside View 3.Back View

Have B28,Don’t Need Worried The Below Problem

1. No Worried Spite Accident

2.Record Car Inside Video Protect Car From Thief

3. Offer Evidence To police

Why choose our products?

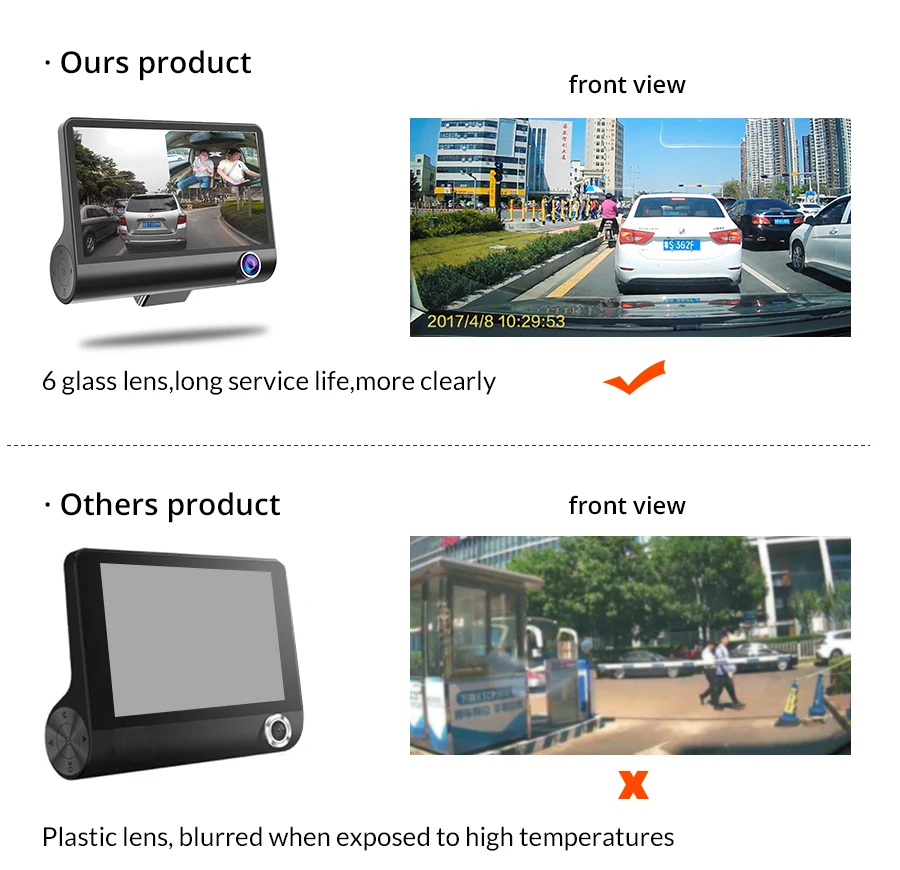

We only use full 6 layers glass camera lens all the time. Some re-sellers use plastic camera lens,But if you use plastic camera lens Dvr, the video and picture are blurry when hot temperature because plastic lens will thermal distortion.You can refer to the video capture below.

Optional Rear Camera

You can choose 2 camera lens(without rear camera lens)if you don’t use rear camera lens.And 85％ customers will choose 3 camera lens (with rear camera lens).

2 Lens — Front + Inside Record

The front + inside lens is recorded at the same time, the front lens is wide-angle at 170deg, the inside lens is wide-angle at 120deg, Enjoying happy travel with families ,don’t forget to record all happy videos timely.

Reverse Image

If you installed our back camera,When reversing,dvr automatically switches to display the rear lens image, and the full screen displays the rear environment assisted reversing.

Waterproof Rear Camera Lens

Rear Camera Lens is with 4 LED lights,automatic fill light when reversing.

About Choosing The Length Of Rear Camera Cable

There are 2 lengths of the rear camera (up to about 10 meters) can be chosen, suitable for cars of different lengths. Please choose the rear camera according to the length of your car.

Three Camera Picture In Picture Display

In addition to front and rear view, you can also observe everything that happens inside the car.Can choose a different screen viewing mode, before and after the double record ,car inside and outside the same record,large wide-angle high-definition picture quality,wider vision,driving more secure.

4.0 inch IPS Screen Display

4.0-inch IPS HD screen playback is more intuitive, clear and delicate.

F2.0 Large Aperture

6 glass lens and F2.0 large aperture, high light transmittance, sharp crystal clear restore the real image.

Loop Recording

When this feature is turned on, the memory card is full and the oldest video will be overwritten by the newly recorded video.However, videos under special conditions will not be overwritten, such as G-sensor, Parking Monitoring.

G-Sensor

When your car is subjected to an impact or other emergency, the G sensor is triggered, so that the recorder immediately records and locks the video.

Motion Detection

With the motion detection function is enabled, when the Car DVR detects a moving object, it will automatically start recording video. When there is no moving object, it will stop recording and detect the moving object again.

Parking Monitor

If you are worried about your car being damaged by someone else after parking, you can use our buck line to connect the DVR to ensure that the recorder works 24 hours.If someone else hurts your car and the shock triggers the G-sensor, the DVR will immediately turn on and record the situation.

​Buck Line

Use the buck line to not occupy the cigarette lighter interface.

First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;

Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;

If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.

Wide Dynamic Range (WDR)

WDR technology can achieve very perfect video and image quality, regardless of whether the outside light is too bright or too dark.

B28 Video Display

B28 Details Display

B28 Display

Packing List

B28

-1 x DVR(Without Rearview Camera)

-1 x Power charger

-1 x User Manual

-2 x Holder

-1 x USB Card Reader (Gift)

B28+6M RCC

-1 x DVR

-1 x Power charger

-1 x User Manual

-2 x Holder

-1 x USB Card Reader (Gift)

-1 x Rearview Camera With 6 Meters Cable

B28+6M RCC+BL

-1 x DVR

-1 x Power charger

-1 x User Manual

-2 x Holder

-1 x USB Card Reader (Gift)

-1 x Rearview Camera With 6 Meters Cable

-1 x Buck Line For 24H Parking Monitoring

B28+10M RCC

-1 x DVR

-1 x Power charger

-1 x User Manual

-2 x Holder

-1 x USB Card Reader (Gift)

-1 x Rearview Camera With 10 Meters Cable

B28+10M RCC+BL

-1 x DVR

-1 x Power charger

-1 x User Manual

-2 x Holder

-1 x USB Card Reader (Gift)

-1 x Rearview Camera With 10 Meters Cable

-1 x Buck Line For 24H Parking Monitoring

Because of the different batch products, the rearview camera may different, thanks for your understanding.

Because of the different batch products, The Holders may different, thanks for your understanding.

Insert the memory card correctly, please refer to the following.

About Rear Camera Installation

Please connect the rear camera’s Red cable wire with your car reverse lamp power ‘s Positive pole(+).and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear, the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
