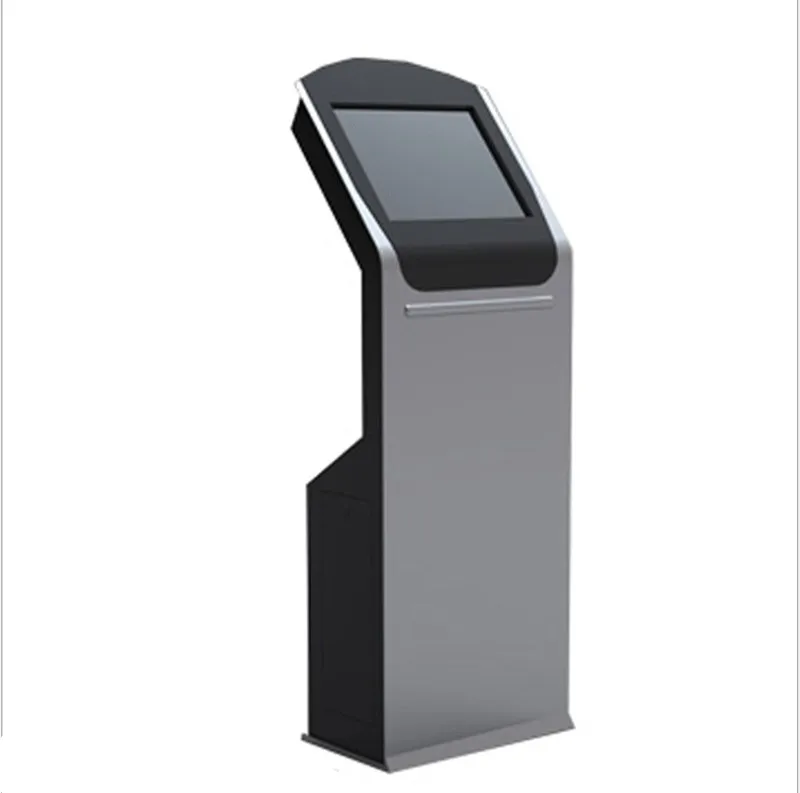

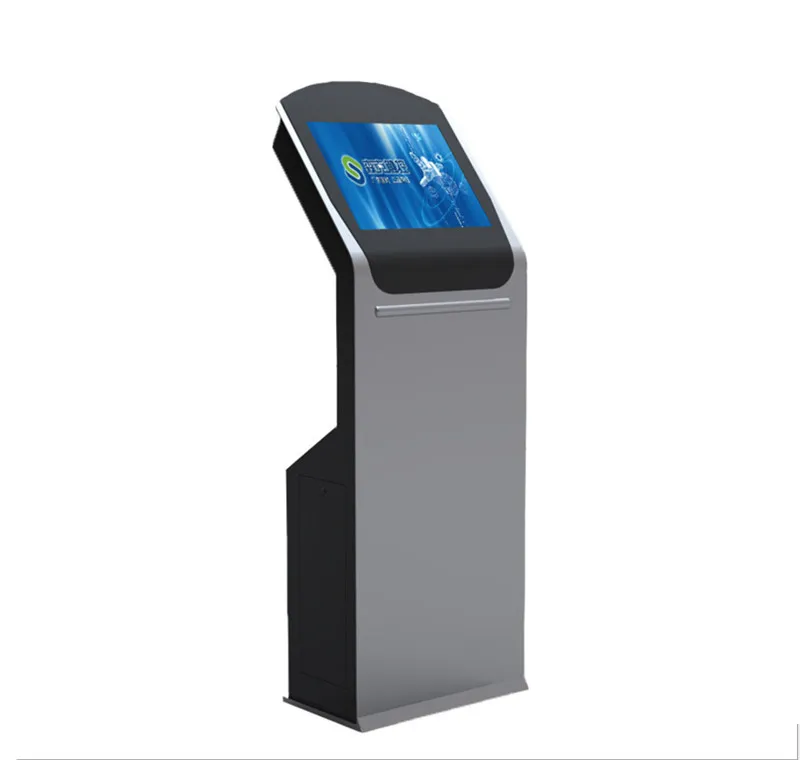

19 Inch Touch screen counter top Queue kiosk information checking Digital Signage ordering kiosk with one 80mm printer



Product Description:



Note: This link for 19 inch Cheap Android Touch Screen Kiosk Printer for Bank Queue, , if you need other configuration, please contact us directly.



Product Description

LCD Display Specification
Brand	ZUCZUG	Model No.	CX193
Size	19 inch	Response time	5ms
Backlight	LED	Dot Pitch	0.282mm×0.282mm
Resolution	1680×1050/60HZ	Viewing Angle (CR>10)	R/L:170(Typ.),U/D:160(Typ)
Aspect Ratio	16:10	Brightness	250cd/m2
Contrast	1000:1	Backlight life	50000h
Color Bits	16.7M	Signal Input Port	LVDS
	Touch Screen Specification
Touch panel type	Resistive	Touch Type	Pressure Touch Sensor
Touch Strength	75g	Touch message port	USB
Touch times	>35 million times	Touch transmittance	≥78%
Surface Hardness	≥3H	Touch Resolution	2048*2048
	Host Specification
Motherboard	Intel D525  Industrial MB	CPU	Intel Celeron Dual Core 1.8GHz
Memory	2G/4G/8G Optional	Hard Disk	SSD 32/64/128/256G or HDD 500GB Optional
Power Supply	External 12V5A	Motherboard Interfaces	VGA×1,COM×1,paralell×1,USB×4,LAN×1, audio output×1
Network Card	Internal Gigabit LAN	Video Card	Integrated Intel HD
External Interfaces	Power wire port, power switch, host switch, USB interface
OS	xp,win7,win8,ubuntu14.04	Customized service option	IC/ID card reader, 58/80mm Printer, metal keyboard, bar code scanner, camera, Swipe Card Reader
		Other Specification
Power	≤48W	Visible Size	377mm×303mm

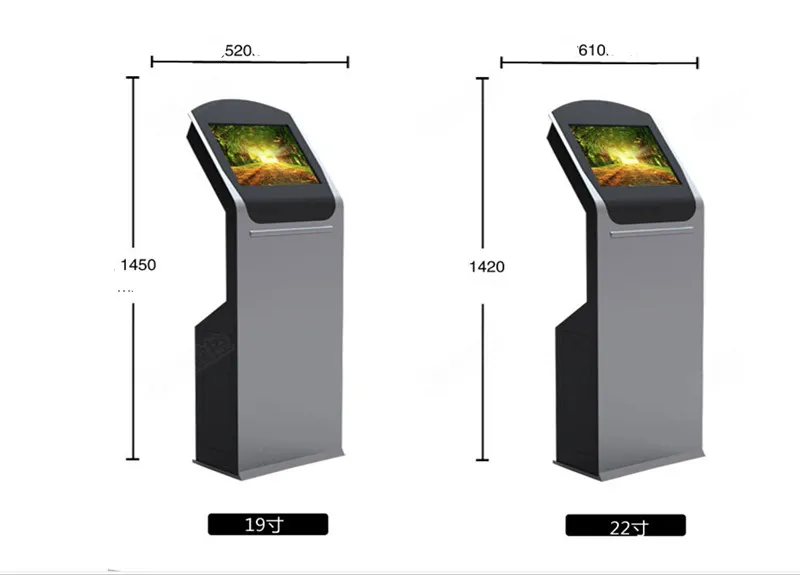

Working Temperature	-10℃~+60℃	Frame Size	1476.141mm×500mm×339.809mm
Humidity	20%~70%	Panel Angle	150 degree
Certification	CE,FCC,CCC	Rough Weight	50KG
Material	Cold-Rolled Plate	Net Weight	/
Application	Industry, commerce	Color (default setting)	silver+gray or silver+blue







Product advantages:

* 2GB RAM + 500GB HDD (Optional)

* Stable function in Low Cost

* Professionalism in R&D and manufacturing

* Perfect after sale service, fast response and repair service















































Application



Applicable Fields:

• Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.



• Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;



• Non-profit Organizations: Telecommunications, post offices, hospital, schools;



• Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;



• Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

• Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
