HDCP 4K HDMI Splitter Full HD 1080p Video HDMI Switch Switcher 1X2 Split 1 in 2 Out Amplifier Dual Display For HDTV DVD PS3 Xbox

RM1638341047202700

HDCP 4K HDMI Splitter Full HD 1080p Video HDMI Switch Switcher 2 Split 1 in 2 Out Amplifier Dual Display For HDTV DVD PS3 Xbox

Description:

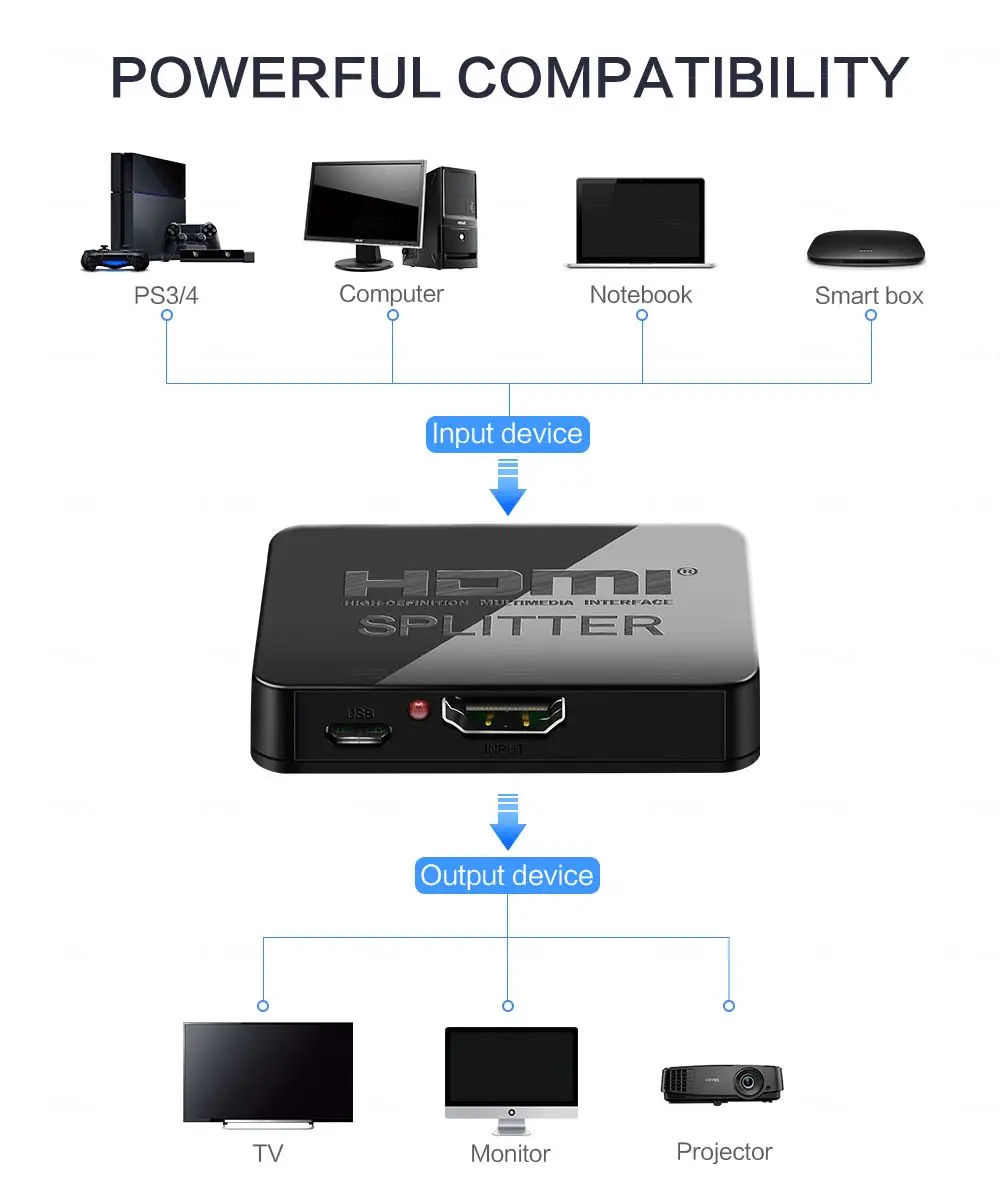

The HDMI Splitter 1×2 offers HD video solution for supermarkets, shopping malls, HDTVs, STB, DVDs, projector factories, data control centres, information distribution, conference rooms presentation, education and training, corporation showrooms, home theatres and more.

Features:

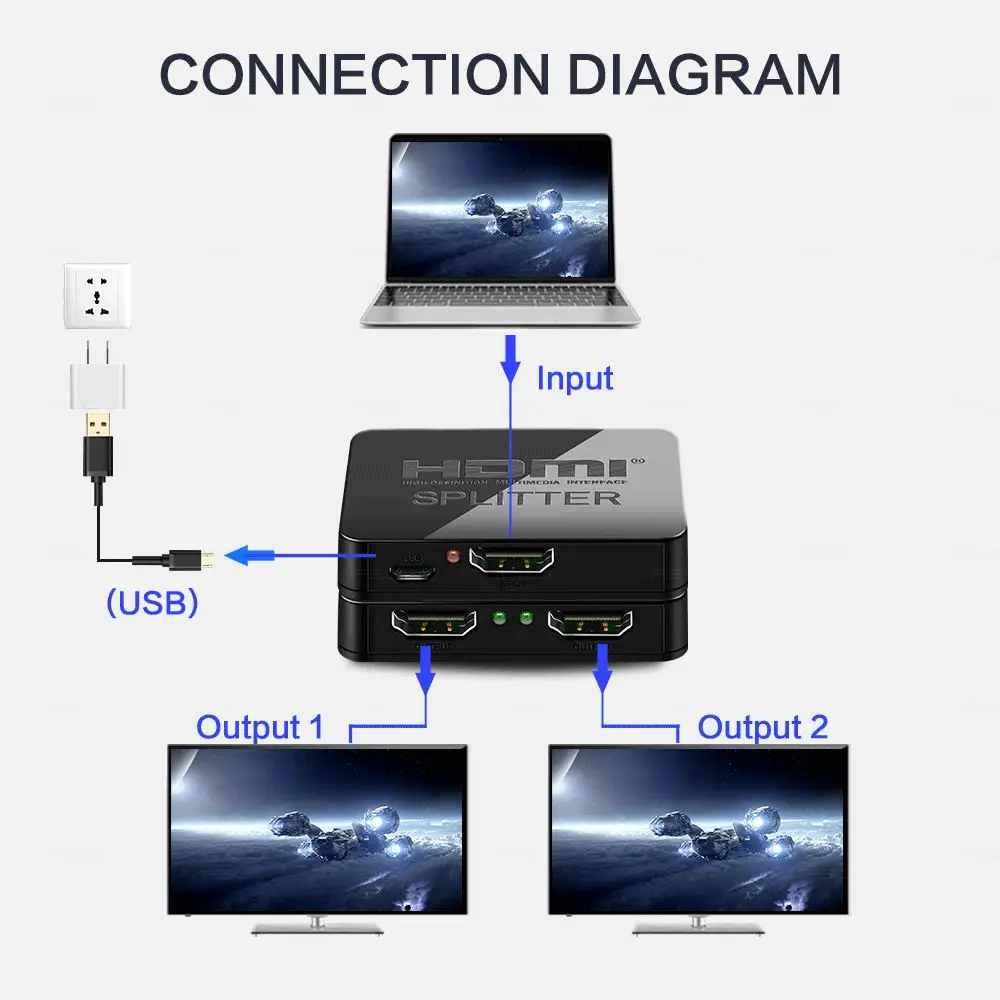

1. One HDMI input signal split to two HDMI sink devices
2. Support Full HD, Full 3D
3. Support up to 1080P/60Hz
4. Support CEC
5. Support deep colour 30bit, 36bit
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7. Digital audio format, as DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD/HD(HBR)
8. Support signal retiming
9. Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
10. No loss of quality

SPECIFICATIONS:

1. HDMI version: HDMI 1.4a
2. HDMI resolution: UP TO 1920*1080/60Hz
3. Support video color format:24bit/deep color 30bit,36bit
4. Support audio format: DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD HD(HBR)
5. Max bandwidth:225MHz
6. Max baud rate:2.25Gbps
7. Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
8. Input/Output DDC signal:5Volts p-p (TTL)
9. Input cable distance:15m AWG26 HDMI standard cable
10. Output cable distance:20m AWG26 HDMI standard cable
11. Max working current:350mA
12. Operating Temperature range:(-15 to +55)
13. Operating Humidity range:5 to 90%RH (No Condensation)
14. Dimension (L x W x H):62x51x11mm

Package contents:

1. HDMI Splitter 1X2
2. USB power cable
